Welding Tips

  • The correct tip will make a difference on the quality and appearance of the weld. Drader Injectiweld makes it easy to finish any job with interchangeable Welding Tips.

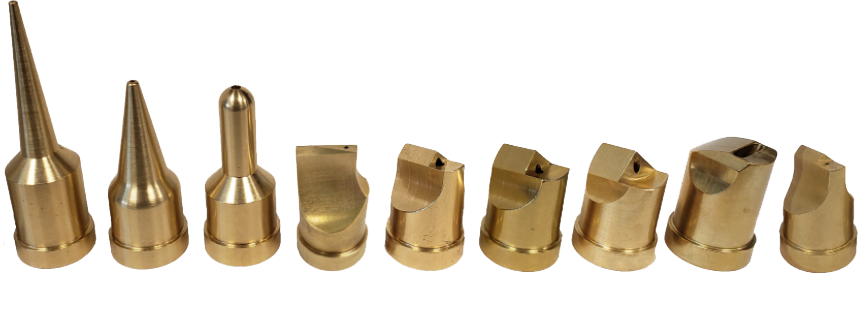

Welding Tips

Fillet Welds

Fillet tips are used mainly for fillet welds [90º] and butt welds. Welders can use the Fillet tip to weld from inside corners out and are able to seal corners without changing tip style. Fillet tips can also be used for crack repairs, as long as the crack is somewhat straight. The longer preheat section allows faster welding speed than welding cracks with the conical tip.

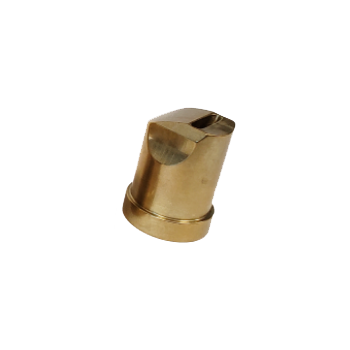

Ribbon Weld Tip

The Ribbon weld tip is used to make a seam weld on thermoplastic materials, such as belting and thin sheets. Because this welding tip does not weld down to the root side, it should not be used for regular butt welds.

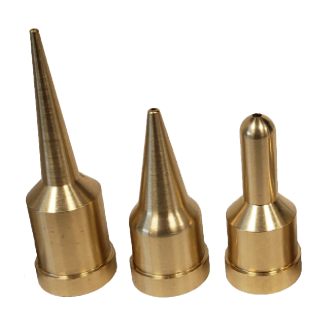

Repair Tip, Bull-Nose Tip, Prototyping Tip

Repair tips are used for crack repairs, filling small holes, spot welding, for reaching tight areas, and for prototyping. Because of their conical shape, they all offer similar types of welds. The Bull-Nose tip is used to repair larger holes. Choose the size that best suits your application.

Inquire About Custom Welding Tips

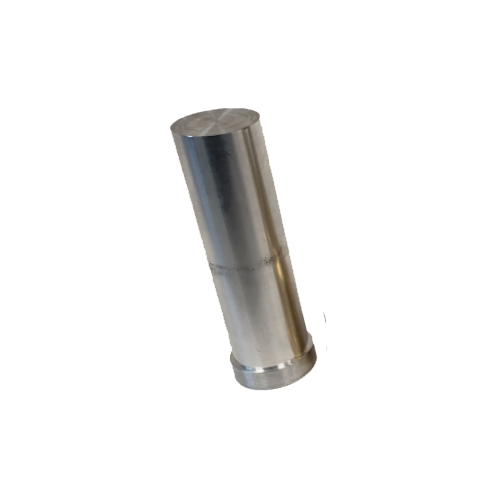

Made from Aluminum, we can custom make welding tips to your specifications. Inquire today!

Inquire About Welding Tips

Or anything you want to talk about. Fill out this form and we will get back to you quickly!

Changing Welding Tips on the Drader Injectiweld
